CNC Milling

First Part Milling Service

CNC milling is the process of machining using rotary cutters to remove material by advancing a cutter into a workpiece. CNC milling tools perform a machining process much like both drilling and cutting. CNC milling is ideal in making angles shapes, slots, holes and curves, flat surfaces and channels. It is efficient in removing surfaces with high accuracy.

Our Milling Process

Milling can be done with a wide range of machine tools. The original class of machine tools for milling was the milling machine. Our CNC milling process is capable of 3-axis (x,y and z), 4-axis and 5-axis (x,y,z, A and B) milling for high speed cutting of engineering-grade materials into product prototypes and precision end-use parts. The specific process is as follows:

01.

CAD model creating

Create the original CAD model according to your design and ideas.

02.

Programing

The original CAD model is transformed into a complete program

03.

Milling machine set up

Set up the milling machine according to the CNC program

04.

Manufacturing

Parts processing production

Our Different Types of Milling

Design and process different types of parts and functions will use different types of milling machines, the following are several common types of milling machines:

CNC Milling

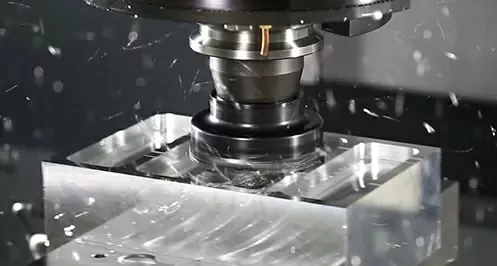

Face Milling

Design and process different types of parts and functions, will use different types of milling machine, the following are several common types of milling machine:

Face milling is the most common milling process, that is, the rotation axis of the cutter is a horizontal milling machine, flat milling is perpendicular to the workpiece, along the direction of motion parallel to the surface of the workpiece! This can be performed using a variety of different tools. The most commonly used is a 45° main Angle milling cutter, but in some cases, a circular blade milling cutter, square shoulder milling cutter, and three side edge milling cutter may be used.

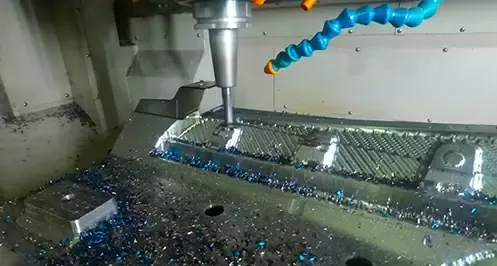

Vertical Milling

In a vertical milling machine, the main axis is vertically oriented.The cutter is fixed in the main shaft and rotates about its axis.Often, the same effect can be achieved by extending the spindle or raising or lowering the table for undercutting and milling.There are two types of vertical milling machines, namely the bed milling machine and the cutter tower milling machine.

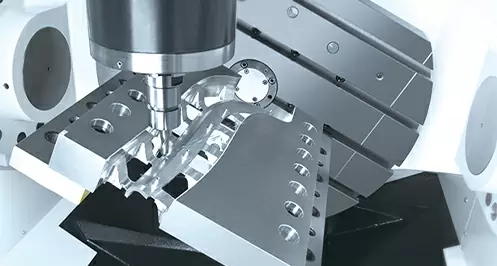

Multi-Axis

We are familiar with CNC machine tools have three linear axes XYZ, multi-axis refers to a machine tool with at least the fourth axis.Usually referred to as multi-axis CNC machining refers to more than 4 axis CNC machining, which is representative of the 5-axis CNC machining. The continuous 5-axis CNC milling machines are similar to the indexed setups. They allow the movement of all axis (X,Y,Z, A and B) concurrently during machining. It allows for continuous movement that enhances the accuracy and the cut and allows for parts with complex geometries to be manufactured.

Why Choose Us

CNC milling is the process of machining using rotary cutters to remove material by advancing a cutter into a workpiece. CNC milling is ideal for making angles shapes, slots, holes, curves, flat surfaces, and channels. It is efficient in removing surfaces with high accuracy. First Part CNC milling greatly improves the processing efficiency and can obtain a high surface finish. In addition, it can also process high hardness modules and has the advantages of the low-temperature rise and small thermal deformation.

Quality and Reliability

Quality and Reliability

First Part is dedicated to meeting high quality standards, delivering part on time with precision, accuracy and reliability. We follow strict quality control systems to ensure that only the best parts are delivered.

Cost-effectiveness and Turnaround

Cost-effectiveness and Turnaround

Budget maximization and design optimization to ensure cost-effectiveness and quick turnarounds for low-volume and mass manufacturing.

Capacity and Network

Capacity and Network

Excellent in-house capacity and capabilities, guaranteeing that your parts are made from top quality from start to finish. Enjoy non-disclosure agreements and take advantage of our network of over 20 CNC machining centres to manufacture parts home and abroad.

CNC Milling Materials

Plastic

· ABS

· Acetal

· CPVC

· HDPE

·LDPE

· Nylon

· PEEK

· PEI

· PET

· PMMA

· Polycarbonate

· Polypropylene

· POM (Delrin)

· PPSU

· PS

· PSU

· PTFE

· PVC

3D Printing

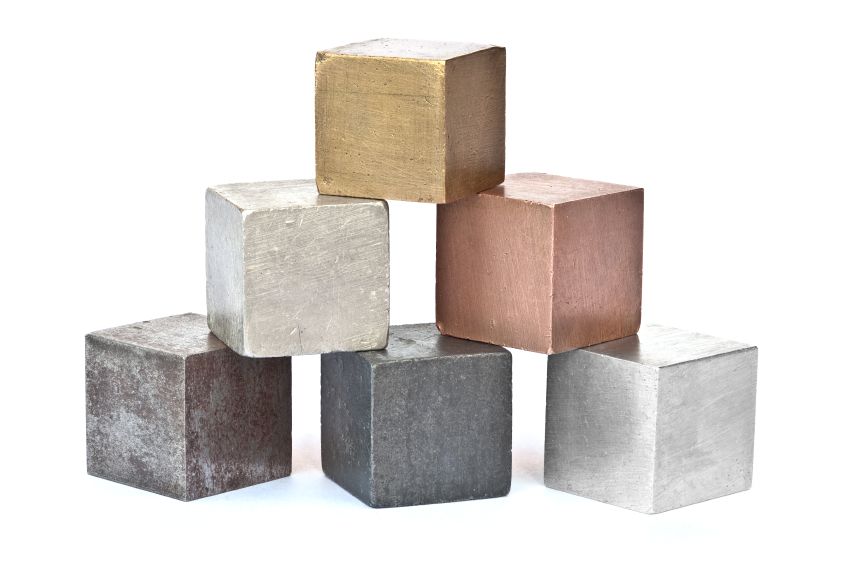

Metals

· Aluminum

· Brass

· Copper

· Stainless Steel

· Steel Alloy

· Steel Mild Low Carbon

· Titanium

Our Milling Equipments

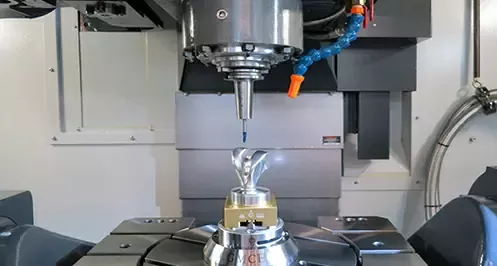

HAAS 5-axis CNC Milling center
CNC Milling center
HAAS CNC Milling center
CNC Milling center
Quality Control and Inspections
CNC Milling center

Request A Quick Quote

Ready to get started? Contact us with details of your project to take advantage of our automated electronic quoting service, design verification process and excellent customer feedback program. With an extensive amount of finishing options to compliment a wide range of material types, over 100 CNC machining centres and deeply-rooted industry experience, Firstpart is always willing to collaborate and deliver functional end-use parts with quality you can trust every time.
